NPT Thread EMT Conduit And Fittings And Steel Compression Connector

NPT Thread EMT Conduit And Fittings And Steel Compression Connector
NPT Thread EMT Conduit And Fittings And Steel Compression Connector NPT Thread EMT Conduit And Fittings And Steel Compression Connector NPT Thread EMT Conduit And Fittings And Steel Compression Connector

Duży Obraz :  NPT Thread EMT Conduit And Fittings And Steel Compression Connector

Szczegóły Produktu:

Place of Origin: Zhejiang ,china
Nazwa handlowa: TOPELE
Orzecznictwo: ISO CERTIFICATE
Model Number: CCN

Zapłata:

Minimum Order Quantity: 500PCS
Cena: negotiable
Packaging Details: Small Plastic bags+carton box, or inner box+carton box+wooden pallet
Delivery Time: 30days, depend on the final order quantity.
Payment Terms: TT/ LC at sight
Supply Ability: 200,000,00pcs per month
Szczegółowy opis produktu
Product Name: EMT Conduit Fittings Material: Pre-Galvanized Steel,Carbon Steel Coil,Conductors
Application: EMT Fitting type: Connector
Size: 0.5 Inch-4 Inch Indoor/Outdoor: Indoor/outdoor
High Light:

explosion proof conduit fittings

,

electrical conduits and fittings



NPT Thread EMT Conduit And Fittings And Steel Compression Connector



Description:

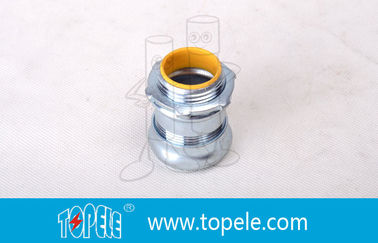

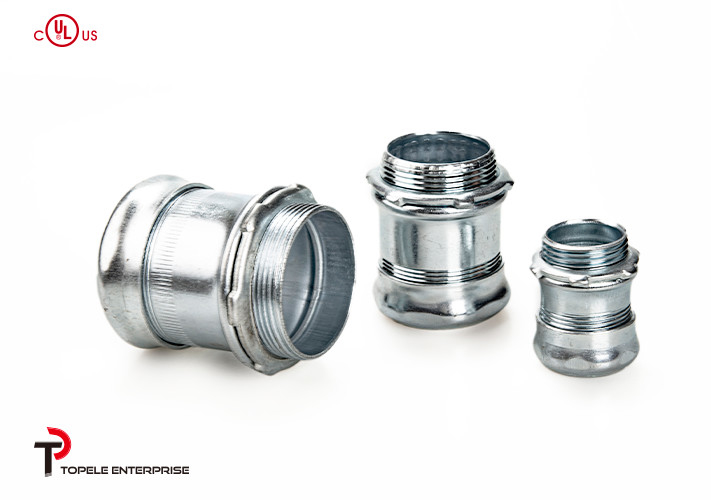

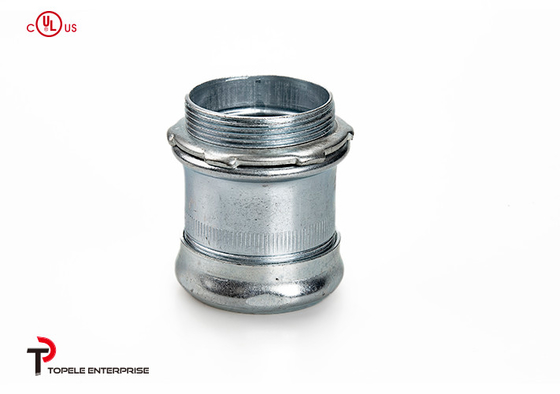

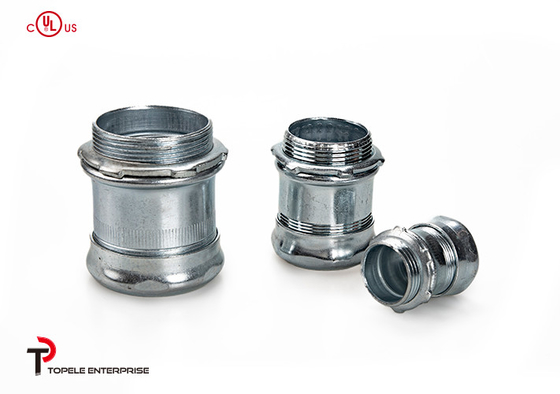

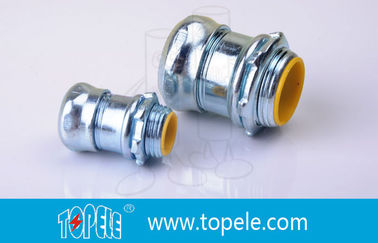

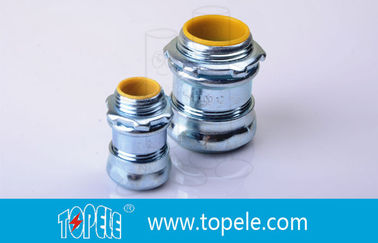

 EMT Steel Compression Connector

TOPELE steel compression connectors are used to ground andsecure EMT raceways to boxes and enclosures. TOPELE EMT steel connectors provide concrete tight connections when taped and properly secured with the included locknut, and are rated for electrical applications above 600 volts. Their heavy gauge steel construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure. Additionally, EMT compression connectors are pure steel and with zinc-plated surface for excellent corrosion protection.





Features:

 Male hub threads-NPT

Available with insulated threat

Concretetight

Insulated throat connnector rated 90 degree

Materila/ Finish: Body and nut made from steel, Steel / Zinc plated



Applications:



EMT compression connector: Joins steel EMT conduit to Electrical box and enclosure

•Connect & effectively bond EMT conduit to steel outlet boxes, load centers & other metal enclosures

•in concrete-tight applications when taped
•Body and locknut made from steel and with zinc-plated surface

•Reversible locknut designed to cut through protective coatings on boxes & enclosures
•Application type : EMT
•Electrical Product Type : Standard Fitting
•Fitting type : Connector
•Indoor/Outdoor : Indoor/outdoor
•Paintable/Stainable : No
•Trade Size (in.) : [1/2"] [3/4"] [1"] [1-1/4"] [1-1/2"] [2"][2-1/2"] [3"] [4"]





Certifications and Compliances

CSA standard: C22.2 No. 18.3

NEMA: FB-1



Specifications:

CCN-50S

1/2"

CCN-75S

3/4"

CCN-100S

1"

CCN-125S

1-1/4"

CCN-150S

1-1/2"

CCN-200S

2"

CCN-250S

2-1/2"

CCN-300S

3"

CCN-400S

4"



Competitive Advantage:



+Quick Delivery: within 30 days for one 20ft container.
+Competitive Price

+ Good Quality: ISO certificate approval

+Best Service: fast delivery, strong package, good price, timely and effective communication

+Powerful Solution: fast and effective solution to problem
